3 Axis 2500 * 1500 mm Water jet Cutting Machines with 420 mpa intensifier pump water jet cutter
Water cutting is a cold cutting, which directly uses the kinetic energy of the abrasive water jet to cut the metal to achieve the cutting purpose. There is no chemical change during the cutting process, and it has no effect on the physical and chemical properties of the cutting material, no thermal deformation, narrow slits, and high precision. , The cutting surface is smooth, clean and pollution-free, and it can process materials that cannot be processed or difficult to process by traditional processing and other processing methods, such as glass, ceramics, composite materials, reflective materials, chemical fibers, heat-sensitive materials, etc.
Comparison of waterjet with traditional cutting methods:
Ultra-high pressure water cutting technology has become the world's most rapidly developing machine tool technology for its highly praised power, speed and versatility.
Manufacturers have achieved higher efficiency and stronger production capacity after applying ultra-high pressure water cutting to their production. Nowadays, waterjet cutting can quickly and accurately cut all kinds of materials from food and paper to composite materials, steel and even rare metals.
With waterjet technology, you can feel:
1. Stronger cutting ability
Easily cut almost any material to meet various applications.
The cold working method has no thermal effect and no mechanical deformation.
With just one step, materials with thickness from 1/16in (1mm) to 8in (200mm) can be cut into any shape.
The pure water jet can quickly cut various soft materials, such as rubber, cork, foam, etc.
It only takes less than two minutes to switch from pure water jet mode to sand water jet mode.
The abrasive waterjet can cut various hard materials, such as metal, stone, plastic, composite material, glass and stone, etc., and the cutting edge quality is good.
2. Reduce material and production costs
Very few fixtures and machining requirements.
The cutting is precise and the edges are neat, which can meet the requirements of tight typesetting. Reduce the production of waste while increasing profits and productivity.
3. Green technology, complementary technology
Waterjet can be used as other cutting methods in production, such as complementary technologies of wire cutting, laser, milling and plasma.
Although each workshop has its own unique cutting process requirements, most of them will find that the water jet has not only increased their production capacity, but also increased their profits.
Waterjet cutting is free of dust, toxic gases and other gas impurities, and will not produce any toxic substances.
Description of our water jet cutter :
| Name | Item | Parameter |
| Intensifier Pump | Model | WMT3742Z |
| motor | SIEMENS |
| Method of Direction Regulation | Electronic direction regulation |
| Pressure Range | 50-420MPA, continuous pressure is 330-380Mpa |
| Maximum Flow of Hydraulic Pump | 90 L/min |
| Maximum Discharge Capacity | 3.7 L/min |
| Maximum Diameter of Gem Nozzle | 0.33 mm |
| Power of Master Motor | 37 KW |
| Power Source | 380V/50HZ, also work at 220V/60HZ, 415V |
| Cutting Table | X axis Characteristic | use strong 10MM steel, 2500MM cutting range. The cutting table width is 2700mm |
| Y axis Characteristic | Cast iron is used as the foundation base , 1500MM cutting range . The cutting table length is 1700mm. |
| Z axis Characteristic | Z axis double linear guide and four sliding block , 180MM, CAN DO 200MM |
| Control Accuracy | ±0.01mm, cutting accuracy is ±0.1mm, reposition accuracy: ±0.02mm, max travelling speed:6000mm/min, we have new technology that can make the travelling speed 20-30m/min. |
| linear guider | TAIWAN HIWIN BRAND |
| Table Ctructure | Separated body, can be delivered by one 20'FCL container |
| Driving Way | Servo drive system |
| CNC system | Ncstudio ,Fagor |
| Servo Motor | SIEMENS motor |
| Cutting Head | Casting structure and Concrete structure |
| Sealing Way | soft dustproof cloth on X,Y,Z axis,the sealing result will be better,and there is a oil tank under the cutting table,the linear guider no need maintainence. |
| Loading Weight Water Tank | Wall thickness is 6mm,using fluorocarbon coating, Can antirust at least 5 years. |
| CNC Controller | Control Method | CNC |
| Display Size | 21inch LCD |
| Model of Cutting Text | DXF |
| Model of Computer | Industrial Control Computer |
| Operating System | Windows 7 |
| PLC | SIEMENS |
| Cutting Software Advantage | Auto save and transfer common parameter |
| Controller Displace | Can be fit to suitable place at own will |
| Automitic Abrasive Feeder | Founction | Sand storage and sand delivery |
| Operating | No need electrocnic control,sample operation |
| Capacity | 200 kg for 8 -10hours |
| Pressure | 0.3-0.6Mpa compresses gas pressure |
| Color | White |
| Deionization System | Water pressure | 0.15Mpa~0.6Mpa |
| Water temperature | 5°C~50°C |
| Environment temperature | 5°C~50°C |
| Relative humidity | ≤95%(25°C) |
| Water turbidity | <20FTU |
| Wireless Handle | Founction | Wireless controlling waterjet |
| Display | Real- time display condition of X,Y,Z axis |
| Settings | Zero point, on/off valve set, X,Y,Z axis moving |
| Technology | Advanced technology |

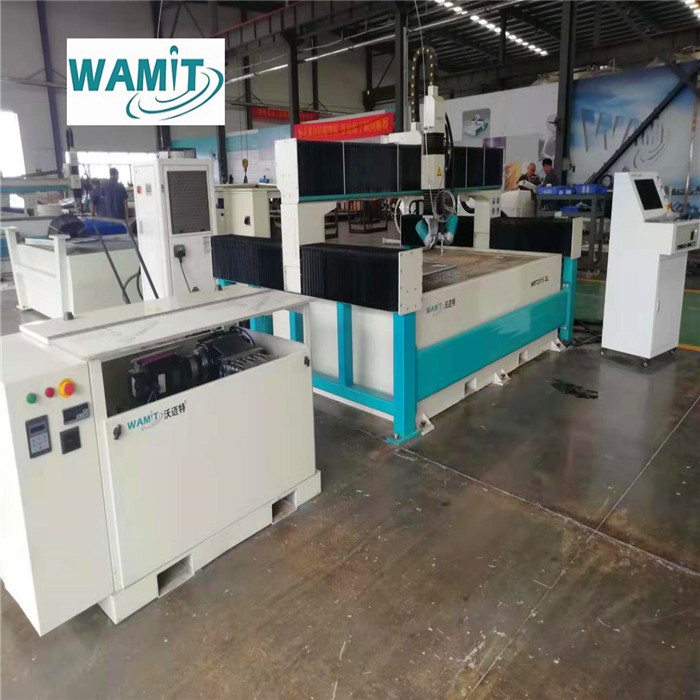

Our water jet cutter :
Customer Service:
We have exported to more than 20 countries yet, and now have agent in America, Russia,South Africa,Ecuador,UK,Argentina,Chile,Mexico,Austrilia,Saudi Arabia and other GCC countries, Malaysia,Vietnam. we can arrange engineers go to customer's factory if no agents in their country.
